P2
Specifications & Features

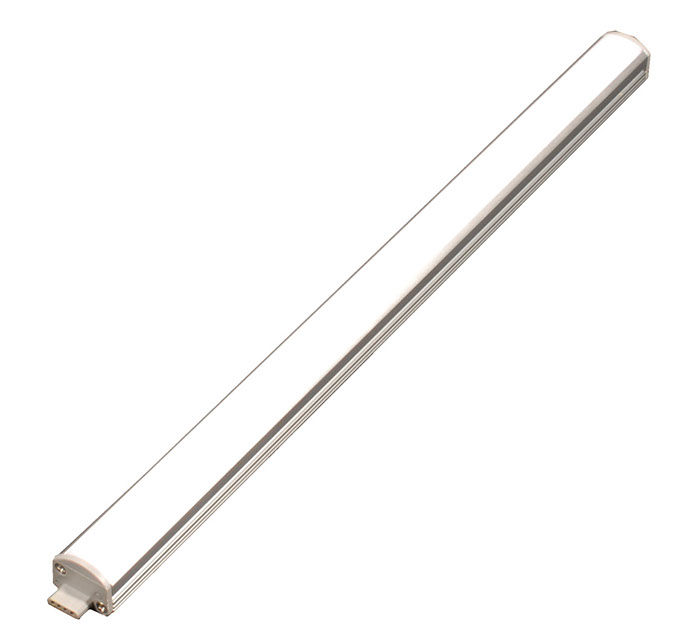

P2 series LED Light bar is a 24V interlocking rigid cove light. It produces even illumination from a 12 inch length and 3/4" by 5/8" profile. Optional 90 degree swivel mounts for versatility.
Dimmable driver specified separately. 12" powerfeed and 12" jumper connector are also available.
Max 20 ft run or 40 ft (20 ft off each powerfeed) with center feed from same driver. 3000K or 4000K, 280 lumens and 420 lumens with 80+ CRI.
ETL listed for USA & Canada.
Tech Specs
_____________________________________________________
LED Performance:
LED: 2835
SDCM: 3 Step Macadam Elipse
CCT: 3000K, 4000K
CRI: >80 Typically 83 (Optional 90+ CRI is available)
LIFE: 70% of initial lumens after 50,000 hrs
Warranty: 5 Year Limited Fixture Warranty
_____________________________________________________
Dimensions:
H = 0.59" W = 0.75" L = 12"
_____________________________________________________
Technical Specifications:
- 4.8W, 24V DC constant voltage input, 280 lumen
- 7.2W, 24V DC constant voltage input, 420 lumen
- Dimmable (with Dimming Driver) See JCLD driver Spec sheet
- Specify Driver separately
- 12" length linkable aluminum housing interlink system
_____________________________________________________
Included:
- Flat mounting clip & interconnection
_____________________________________________________
Finishes:
SZ
_____________________________________________________
Accessories:
P2-PWR
P2-FLEX
P2-CLIP
P2-CLIP45
P2-CLIPSM
_____________________________________________________
Ordering Codes:
P2-300-5-24-830
4.8W, Standard Output, 280lm, 3000K
P2-300-5-24-840
4.8W, Standard Output, 280lm, 4000K
P2-300-7-24-830
7.2W, High Output, 420lm, 3000K
P2-300-7-24-840
7.2W, High Output, 420lm, 4000K
