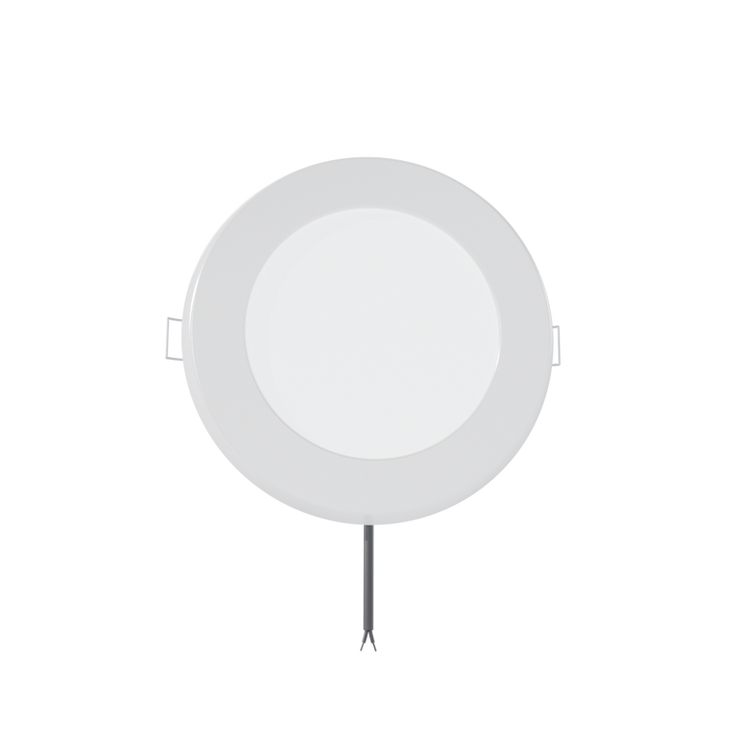

The HP155 is a robust 6-inch LED fixture designed for versatile architectural lighting applications. It features both RGB (red, blue, white) capability and selectable white color temperatures (3000K, 4000K, 5000K), enabling tailored illumination for ambiance, mood, or functional clarity. Rated IP44 or IP65 depending on configuration, and ETL certified, it performs reliably in both indoor and outdoor environments.

Users can control output via three dedicated wire pairs for each color, or use the microprocessor-driven 2-wire system for simplified dimming and color selection through standard switch patterns. The low-profile form factor allows installation in areas with limited ceiling depth, and it can be finished in polished or powder-coated white 316 stainless steel with either a radiused (Classic) or square (Modern) trim style to match a wide range of design aesthetics.

Compatible with 10–30V DC systems (12V or 24V), the HP155 delivers a powerful 540-lumen output, making it a flexible solution for residential, commercial, hospitality, and architectural lighting environments.

Features:

• Input: 10-30V DC
• Power Consumption: W=9W, B=4.5W, R=3W
• Color Options:
  • White: User-selectable color temperatures of 3000K, 4000K, 5000K
  • Red and Blue: Ideal for preserving night vision or setting ambiance
• Color Control:
  • 2-Wire Control: Microprocessor-controlled dimming and color selection via a simple control switch sequence
  • 3-Wire Control: Separate wire pairs for each color, offering quick color selection flexibility
• Trim Options: 316 stainless steel in polished or powder-coated white, available in radiused (Classic) or square (Modern) contours
• CRI: 90+
• IP Rating: Available in IP44 or IP65 for moisture and dust resistance
• Package dimensions:

  7.2"

  6.6"

  2.1"

• Shipping weight: 16 oz.
