D8 / D8-3F Mini Down Light
D8 Series LED Puck Light is a 350/700mA mini recessed cabinet light on a gimbal ring. Using D8-S01 mounting ring will allow this series to be surface mounted. When using with matching constant current LED driver which will allow multiple lights to be connected with a single driver.
D8-3F LED Puck Light is a 350mA mini puck & recessed cabinet light. Using D8-3F mounting ring will allow this series to be surface mounted. When using with matching constant current LED driver which allows multiple light fixtures to be connected with a single driver. 3000K or 5000K, 80 lm/watt
80+ CRI. ETL listed for USA & Canada.

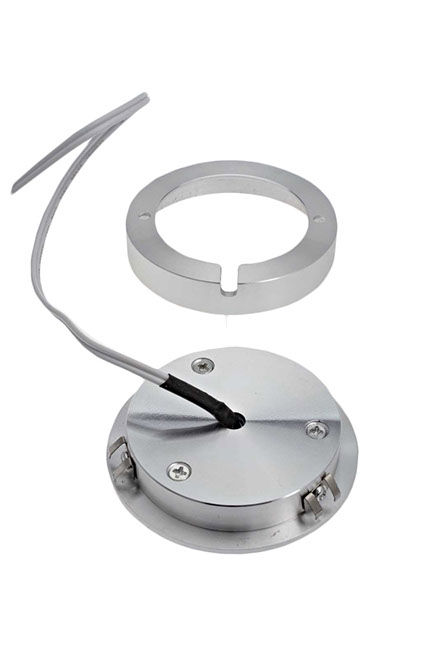

D8-S01~7 mounting ring will allow this series to be surface mounted. Low profile design to match STDC08 series
Machine crafted CNC aluminum housing
Louver vents along housing allow heat to exit from side
Tech Specs
_____________________________________________________
LED Performance:
D8-1-700: 2.19 watt @ 700mA
D8-1: 1.02 watt @ 330mA typical 1.2 watt max @ 350mA
D8-3/3F: 3.04 watt @ 350mA
D8-4: 4.05 watt @ 350mA typical
D8-6: 6.09watt @ 350mA typical
D8-7: 7.05 watt @ 350mA typical
SDCM: 3 Step Macadam Elipse
CCT: 3000K, 5000K
CRI: >80 Typically 83 (Optional 90+ CRI is available)
LIFE: 70% of initial lumens after 50,000 hrs
Warranty: 5 Year Limited Fixture Warranty
_____________________________________________________
Dimensions:
See Spec Sheet
_____________________________________________________
Technical Specifications:
- 157 lumens (D8-1-700) / 95 lumens (D8-1) / 285 lumens (D8-3) / 240 lumens (D8-3F) / 386 lumens (D8-4) / 590 lumens (D8-6) / 667 lumens (D8-7)
- Standard molex connection
- •Dimmable (with Dimming Driver)
- Specify Driver separately
- 1 to 2, 1 to 4 and 1 to 6 multiple connectors
- NFL 20 degrees & WFL 40 degrees optical lens
_____________________________________________________
Included:
- Optical Lens NFL (20 degrees) / WFL (40 degrees)
_____________________________________________________
Finishes:
White Bronze Silver Black
_____________________________________________________
Accessories:
Dimmable drivers
Multiple connector 1-2, 1-4 & 1-6
Surface mount collar D8-S01
Four finishes, Bronze, Black, Silver & White
Cord extension
